Iterated Integrals and Area


Definition of an Iterated Integral

Just as we can take partial derivative by considering only one of the variables a true variable and holding the rest of the variables constant, we can take a "partial integral".  We indicate which is the true variable by writing "dx", "dy", etc.  Also as with partial derivatives, we can take two "partial integrals" taking one variable at a time.  In practice, we will either take x first then y or y first then x.  We call this an iterated integral or a double integral.


Definition of a Double Integral

Let f(x,y) be a function of two variables defined on a region R bounded below and above by

                y  =  g1(x)          and          y  =  g2(x)

and to the left and right by

                x  =  a          and          x  =  b

then the double integral (or iterated integral) of f(x,y) over R is defined by



Find the double integral of  f(x,y)  =   6x2 + 2y  over R where R is the region between y  =  x2 and y  =  4



First we have that the inside limits of integration are x2 and 4.  The region is bounded from the left by x  =  -2 and from the right by x  =  2 as indicated by the picture below.

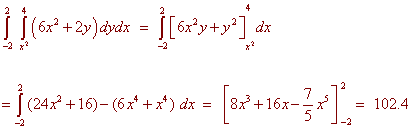

We now integrate


Changing the Order of Integration

If a region is bounded from the left by  x  =  h1(y) and the right by  x  =  h2(y) and below and above by y  =  c and y  =  d, then we can find the double integral of "dxdy" by first integrating with respect to x then with respect to y.  Sometimes there is a choice to make as to whether to integrate first with respect to x and then with respect to y.  We do whatever is easier.



Find the double integral of  f(x,y)  =  3y over the triangle with vertices (-1,1), (0,0), and (1,1).



If we try to integrate with respect y first, we will have to cut the region into two pieces and perform two iterated integrals.  Instead we integrate with respect to x first.  The region is bounded on the left and the right by x  =  -y  and x  =  y.  The lowest the region gets is y  =  0  and the highest is  y  =  1.  The integral is




Evaluate the integral




Try as you may, you will not find an antiderivative of and we don't want to get into power series expansions.  We have another choice.  The picture below shows the region.


We can switch the order of integration.  The region is bounded above and below by y  =  1/3 x  and  y  =  0.  The double integral with respect to y first and then with respect to x is


The integrand is just a constant with respect to y so we get


This integral can be performed with simple u-substitution.

        u  =  x2        du  =  2x dx

and the integral becomes



Recall from first year calculus, if a region R is bounded below by  y  =  g1(x)  and above by  y  =  g2(x), and  <  x  <  b, the area is given by


There is another way of achieving this expression.  If we let the integrand by 1 then the double integral over the region R is


This gives us another way of finding area.

Theorem:  Area and Double Integrals

 If a region R is bounded below by  y  =  g1(x)  and above by  y  =  g2(x), and  <  x  <  b, then the area is given by


Remark:  If the region if bounded on the left by x  =  h1(y) and the right by h2(y) with c <  y  <  d, then the double integral of 1 dxdy can also be used to find the area.



Set up the double integral that gives the area between  y  =  x2  and  y  =  x3.   Then use a computer or calculator to evaluate this integral.



The picture below shows the region


We set up the integral


A computer gives the answer of 1/12.
