Power Series

Definition of a Power Series

          Definition of a Power Series

Let f(x) be the function represented by the series



Then f(x) is called a power series function.



More generally, if f(x) is represented by the series



Then we call f(x) a power series centered at x = c.  The domain of f(x) is called the Interval of Convergence and half the length of the domain is called the Radius of Convergence.


The Radius of Convergence

To compute the radius of convergence, we use the ratio test.


Example:
 Find the radius of convergence of



Solution:   We use the Ratio Test:


We solve



or

        |x - 3| < 2

so that

        1 < x < 5

Since

           1
                (5 - 1) = 2
           2

the radius of convergence is 2.  Notice that we could have use the geometric series test and obtained the same result.  The ratio test is the most likely test to work, but occasionally another test such as the geometric series test or the root test is easier to use.

Exercise:

Find the radius of convergence of




Interval of Convergence

To find the interval of convergence we follow the three steps:

  1. Use the ratio test to find the interval where the series is absolutely convergent.

  2. Plug in the left endpoint to see if it converges at the left endpoint.  (AST may be useful).

  3. Plug in the right endpoint to see if it converges at the right endpoint.  (AST may be useful).

Example:

Find the interval of convergence for the previous example:



Solution:

  1. We have already  done this step and found that the series converges absolutely
    for 1 < x < 5.

  2. We plug in x = 1 to get



    This series diverges by the limit test.

  3. We plug in x = 5 to get



    This series also diverges by the limit test.

Hence the endpoints are not included in the interval of convergence.  We can conclude that the interval of convergence is

         1 < x < 5



Exercise

Find the interval of convergence of the previous exercise:




Differentiation  and Integration of Power Series

Since a power series is a function, it is natural to ask if the function is continuous, differentiable or integrable.  The following theorem answers this question.


                                       Theorem

Suppose that a function is given by the power series



and that the interval of convergence is

          (c - R, c + R) (plus possible endpoints)

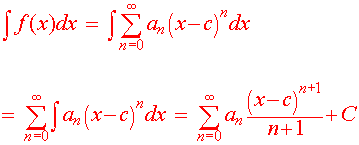

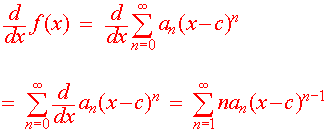

then f(x) is continuous, differentiable, and integrable on that interval (not necessarily including the endpoints).  To obtain the derivative or the integral of f(x) we can pass the derivative or integral through the S.  In other words



and


Furthermore, the radius of convergence for the derivative and integral is R.



Example:

Consider the series



by the GST this series converges for |x| < 1,  hence the center of convergence is 0 and the radius is 1.  By the above theorem



has center of convergence 0 and radius of convergence 1 also.  We can also say that



also has center of convergence 0 and radius of convergence 1.
